Smart Door Lock — Long Handle Silver
6085 — 60mm backset, Australian standard
$494.99
Sale price
$494.99
Regular price
Skip to product information
Smart Door Lock — Long Handle Silver
$494.99
Sale price
$494.99
Regular price
Quantity
1
2
1
2
3
Delivery & Shipping
Order processing — Orders are processed within 1 to 3 business days of payment clearing. Business days are Monday to Friday, excluding public holidays.
Delivery time — Allow 7 to 10 business days after dispatch. Orders ship from our warehouse in Bangkok, Thailand.
Where we ship — Australia · United Kingdom · United States
Shipping cost — Free on every order, no minimum spend, to all three countries. Import duties or taxes may be charged by your own country on delivery.
Returns & Refunds
Change of mind — You have 14 days from delivery to return an unused lock in its original packaging, with all accessories, cards and keys. This applies in every country we ship to.
Your statutory rights — On top of that, UK customers have a 14-day right to cancel, and Australian customers the consumer guarantees under the Australian Consumer Law, which cannot be excluded. Where the law gives you more than our 14-day policy, the law wins.
Return postage — Paid by you for a change of mind. Paid by us if the item is faulty, damaged on arrival, the wrong item, or not as described.
Refunds — To the original payment method, within 14 days of the return reaching us.
Backset CalculatorTwo questions, about a minute — find the exact mortise for your door
Two questions, about a minute. Keep a tape measure handy.
1Your door
Where is this lock going?
The gate lock suits that better
This is a door lock. For a gate, our SL-G1 has a 34 mm panel made for narrow gate uprights and fingerprint readers on both sides.
2Your measurement
Measure from the faceplate of your existing mortise to the centre of the square spindle hole. What does it read?
Order the 6085 mortise
60 mm backset, 85 mm centres. This is the one most Australian doors take.
Order the 4585 mortise
45 mm backset, 85 mm centres.
Order the 3585 mortise
If your door slides, order the 3585 hook bolt version instead — a straight bolt will not hold on a slider.
Order the 2885 mortise
If your door slides, order the 2885 hook bolt version instead.
You need a hook bolt
A straight bolt has nothing to grip on a sliding door. Measure your backset, then order the hook bolt version of that size — 2885 hook or 3585 hook.
Measure the mortise, not the door
Measure from the faceplate to the centre of the square spindle hole. The sizing guide shows it with a diagram.
Not sure at any point? Open the full sizing guide, or email us a photo of your door edge with a tape measure across it and we will tell you exactly what to order.
Guides and installation
Check the size, then follow the guide

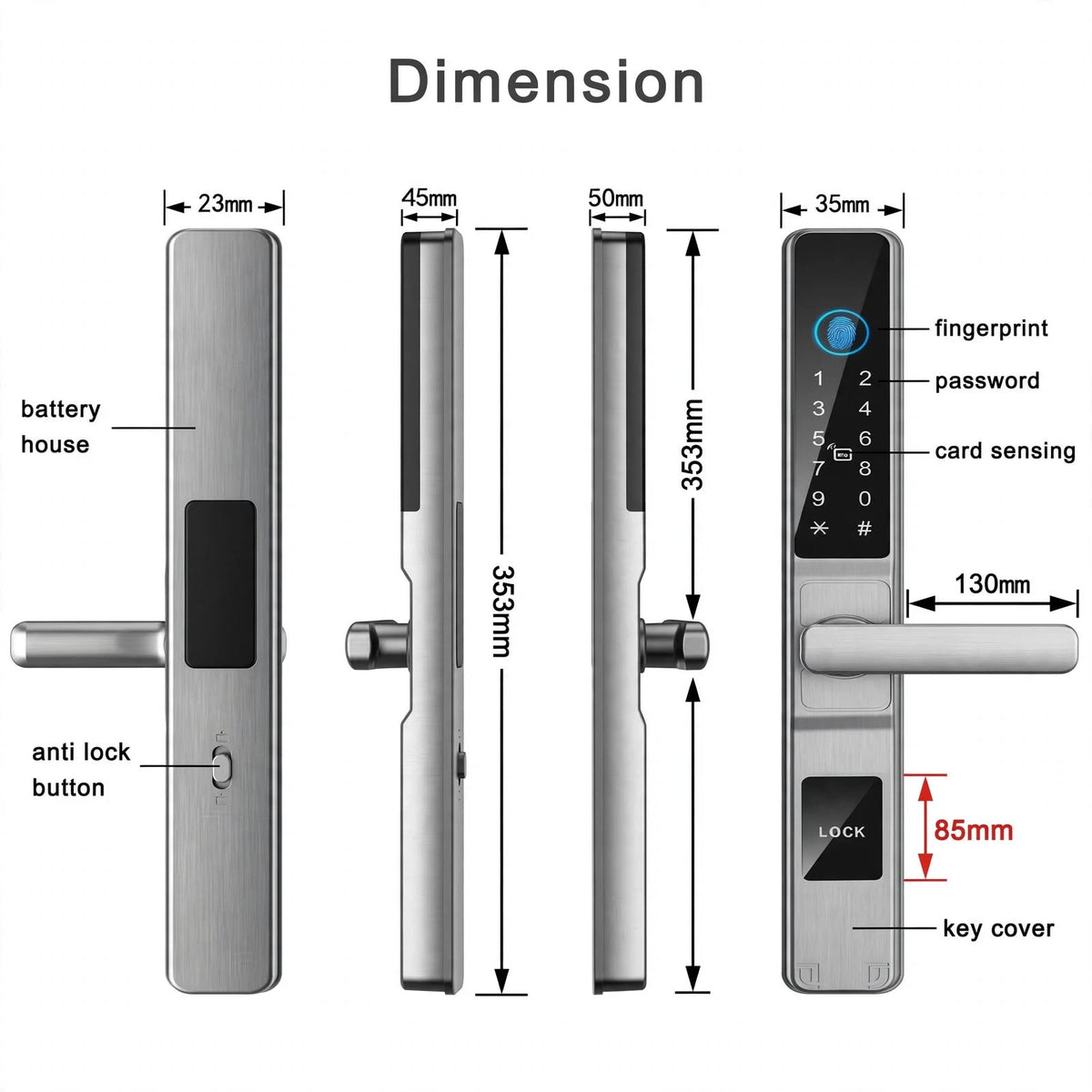

Every dimension that matters is on the drawing: 353 mm overall, a 35 mm front panel, 23 mm at the rear and 85 mm between centres. Check those against your door, then pick the mortise size — the four-digit code is a measurement, not a style.
PDF
User manual
Keypad functions, adding users, fingerprints and cards on the lock
PDF
TTLock app setup
Registration, pairing, passcodes, e-keys and the Wi-Fi gateway
How to measure your door
The four measurements explained, with diagrams
Not sure which option you have? Send us a photo of your door edge with a tape measure across it and we will tell you which one to order.
Technical detail
Specifications
Everything the manufacturer publishes, including the limits. Tap a row to open it.
Full specifications
| Model reference | SL-P1 (manufacturer A6, long handle) |
|---|---|
| Weather rating | IP66 |

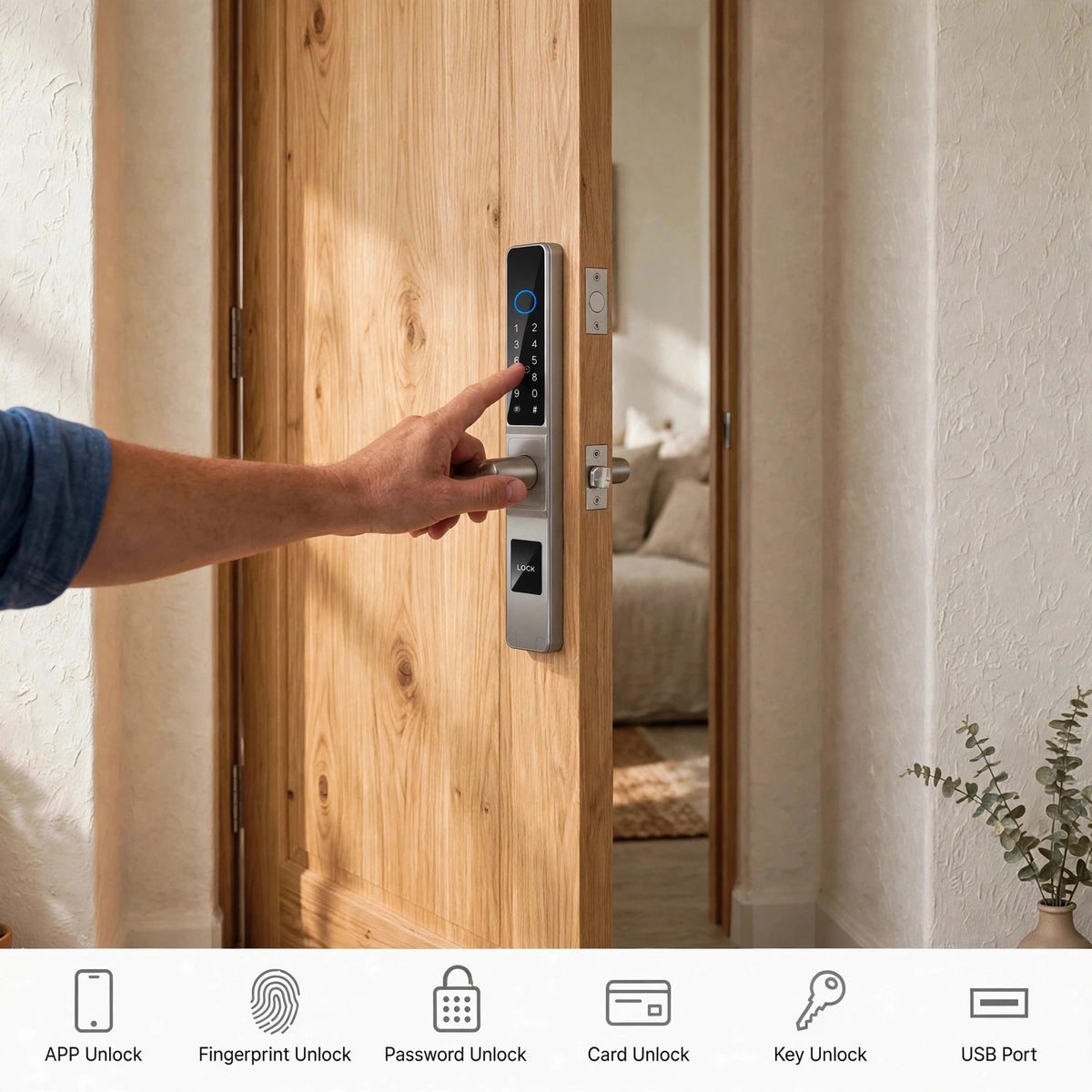

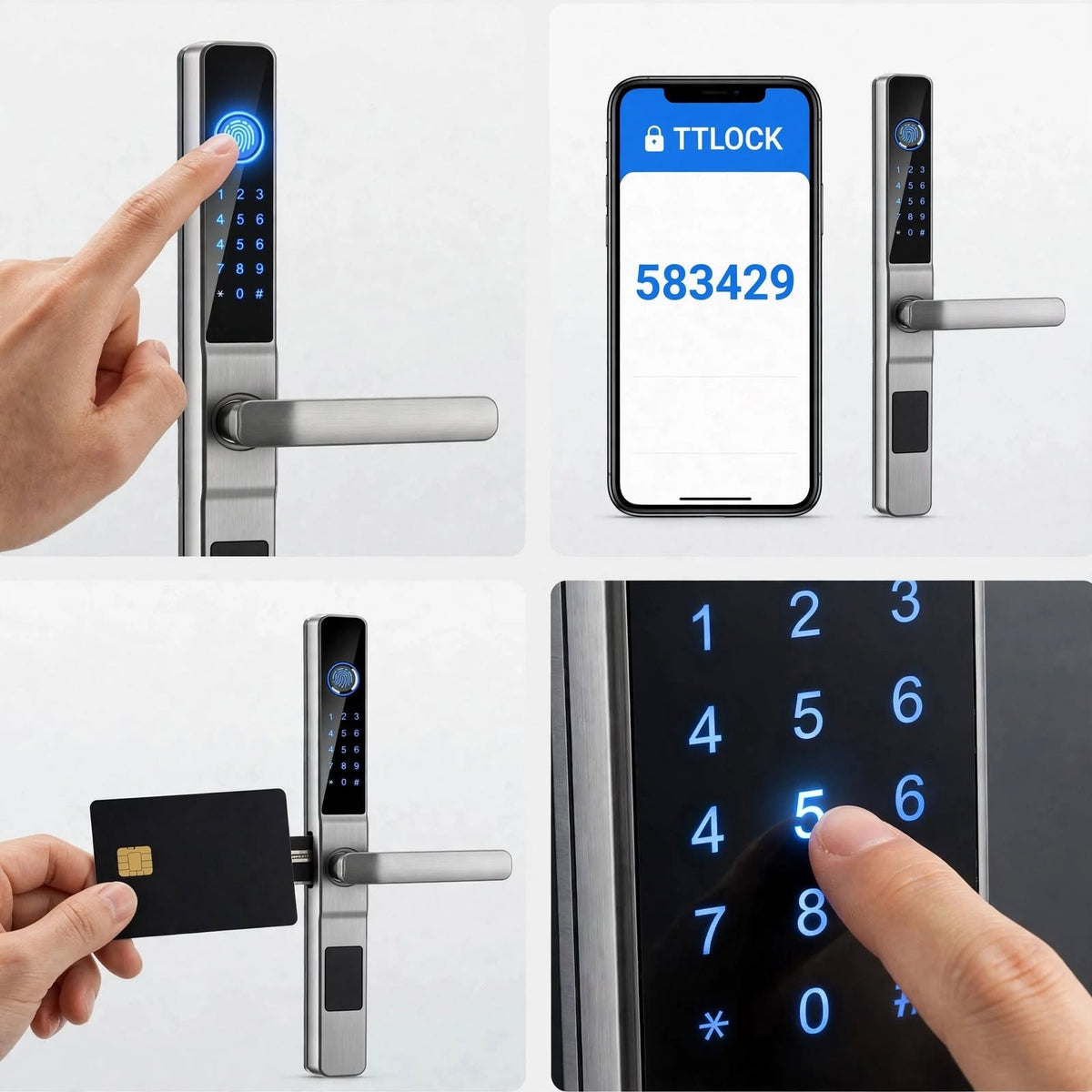

| Unlock methods | Fingerprint, keypad code, IC card, TTLock app, remote control, mechanical key |
| Capacity | 100 fingerprints, 100 cards, 50 codes |
| Read time | 0.1 seconds or less |
| Touchscreen | Tempered glass, virtual password supported |
| Front material | Stainless steel, aluminium alloy body |
| Mortise options | 2885, 3585, 4585, 6085, 2885 hook, 3585 hook |
| Door thickness | 45–70 mm published specification (40–55 mm in the fitting notes — confirm with us if you are outside 45–55 mm) |
| Door types | Timber, metal, framed glass, brass, stainless steel |
| Handing | Reversible |
| Operating temperature | −25°C to 70°C |
| Power | 4 × AA alkaline cells, not included. Low battery warning |
| Connectivity | Bluetooth. Wi-Fi and remote access via the optional G2 gateway |
| Lock cylinder grade | C grade |
What comes in the box
- Front lock panel
- Rear lock panel
- 2 × waterproof rubbers
- Mortise in the size you selected
- 2 × RFID cards
- 2 × mechanical keys
- Screw kit
- User manual
Read this before you order
Batteries are not included. Four AA alkaline cells. Buy them with the lock so you are not stuck on installation day.
The two published door thickness figures disagree. The specification says 45–70 mm, the fitting notes say 40–55 mm. Where they overlap — 45 to 55 mm — you are safe. Outside that, message us and we will confirm with the manufacturer before you order.
The mortise code is not decoration. Ordering 4585 for a 60 mm backset door will not fit, and no amount of adjusting will make it. Measure first.
Remote access needs the G2 gateway, sold separately.
Australian doors are usually 60 mm backset. Unless you have measured otherwise, 6085 is the option you want.
No Australian certification. Ask us before ordering if you need compliance paperwork for a strata or commercial fit-out.
Before you buy
Questions people ask about this lock
Fitting and measurement questions in depth live in the sizing guide. How to choose between our five types is in the buying guide.
Which option should I pick if I have not measured?
Do not pick one — measure first. But if your door is a standard Australian hinged timber entry door, 6085 is almost certainly it.
What is the difference between this and the short Push/Pull Handle model?
Handle length. This one is long, for full-width timber and framed glass doors. The Push/Pull Handle model is short, for narrow aluminium stiles and sliding doors where a long handle would foul the frame.
What is a hook bolt and do I need one?
It is a bolt that swings out and hooks into the door jamb instead of sliding straight in. Sliding doors need it; hinged doors do not.
Can it go on an exposed front door?
Yes. IP66 with waterproof rubbers supplied. It is one of only two locks in our range rated for weather.
Does it work with Apple Home?
No. TTLock, with Alexa support through the gateway. No Apple Home or Matter.
Can I fit it myself?
If you are replacing a like-for-like mortise, yes. If you are changing mortise size or cutting fresh, get a locksmith — the mortise pocket has to be cut accurately.
